Overriding status bar display settings in the iOS simulator

With version 11 of Xcode, the IDE ships with a new feature in the simctl tool that can override status bar values for iOS simulators. This allows you to take better screenshots for the App Store without having to worrying about the time, battery level, etc. It is a great improvement, but there are some significant shortcomings. I’ve written a script to fix at least some of those.

Before Xcode 11, developers needed to rely on third-party tools like Dave Verwer’s SimulatorStatusMagic (now deprecated in favor of simctl status_bar). It is convenient to see this become a first-party tool instead.

Using simctl status_bar

To begin using this feature, run xcrun simctl status_bar in your terminal, which will print a usage explanation and the list of possible override options. Here’s an example for a simulator named “iPhone 11”:

$ xcrun simctl status_bar "iPhone 11" override --time 9:41 --dataNetwork wifi --wifiMode active --wifiBars 3 --cellularMode active --cellularBars 4 --batteryState charged --batteryLevel 100

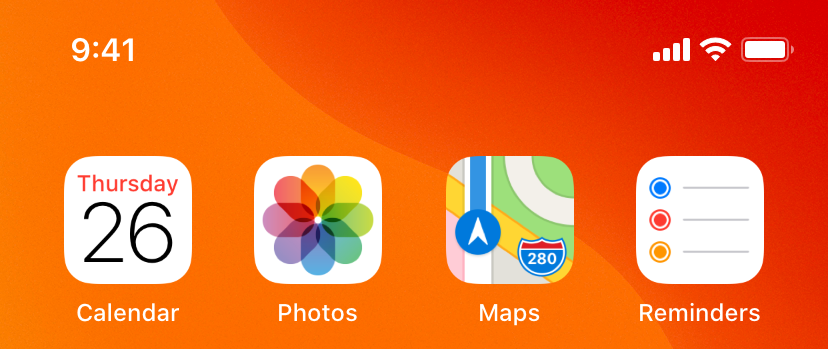

This produces the following:

You can specify the time, WiFi state, cellular state, and battery state. What’s really nice is that you can specify the simulator using only its name, not some obscure identifier. If you hover your mouse over a simulator device, or bring its window to the front, it will display its name and OS version beneath it. Or, if you have “Show Device Bezels” turned off, the name and OS version will display in the window’s title bar.

The overrides in this example are the ones I plan to use for all of my screenshots, and I recommend you do the same — full cellular bars, full WiFi bars, full battery, and 9:41 for the time. This is what Apple uses for all of their marketing screenshots, and there is no doubt that it is intentional. The time 9:41 is strangely aesthetically pleasing, and I’m sure someone spent a lot of time to figure that out. Update: Or, perhaps not. 😄

Shortcomings

The most frustrating issue is that any status bar overrides that you set do not persist across simulator launches. If you close (shutdown) a simulator and relaunch it, the status bar returns to its default state. This means you end up running the above command often, which is difficult to remember at 181 characters.

However, you can create a custom bash command so you don’t have to remember. You can add the following to your ~/.bash_profile:

function fix_status_bar() {
    ( set -x; xcrun simctl status_bar "$1" override --time 9:41 --dataNetwork wifi --wifiMode active --wifiBars 3 --cellularMode active --cellularBars 4 --batteryState charged --batteryLevel 100 )
}

And then run the command:

$ fix_status_bar "iPhone 11"

This is much more usable. Note: using set -x; and wrapping the command in ( ) (creating a subshell) will echo the command to your terminal, so you can see exactly what is being executed. You can remove these if you like.

One nice-to-have would be to make these overrides the defaults such that you could run xcrun simctl status_bar "<DEVICE>" override without specifying any options to get “Apple Marketing approved” status bars.

Another aspect of the simulator status bars on “notch-less” iPhones (iPhones before the X) is that they display “Carrier” for the cellular carrier. I do not think simctl status_bar should let you override this with a custom value, since cellular carriers are not the same in all locales. However, I think you should be able to remove this. You cannot. But, I suppose most folks are going to be taking screenshots using the latest devices, which means this should not be much of a concern.

Finally, I think all of these options should be present in the Simulator.app File menu, which already includes options like showing the in-call status bar and setting a custom location.

It would be nice to see these improvements in future releases: default override values, persistence of these settings across launches, and a way to toggle the defaults from the simulator app.
